Lifting Attachments
Attachments for every application
Mi-Jack supplies various types of lifting attachments for all types of equipment. From magnets and straps to twist locks and multiple pick points, Mi-Jack equips your Travelift with the spreader bar attachments needed to handle any steel, precast, manufacturing, wind, or bridge related load.

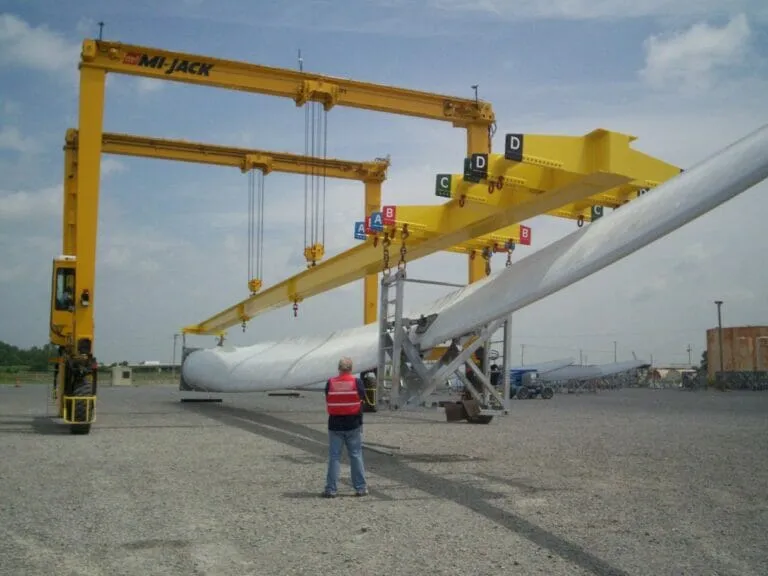

Wind Turbine Section Lifting Using a Spreader Bar with Twist Locks and Multiple Pick Points
- 130’ spreader bar featuring multiple pick points
- Handles up to 30k lbs and 170’ blades
- Able to pick up blades with either straps or twist locks
Wind Turbine Blade Lifting Using a Spreader Bar with Straps and Multiple Pick Points
- 130’ spreader bar featuring multiple pick points
- Handles up to 30k lbs and 170’ blades
- Able to pick up blades with either straps or twist locks

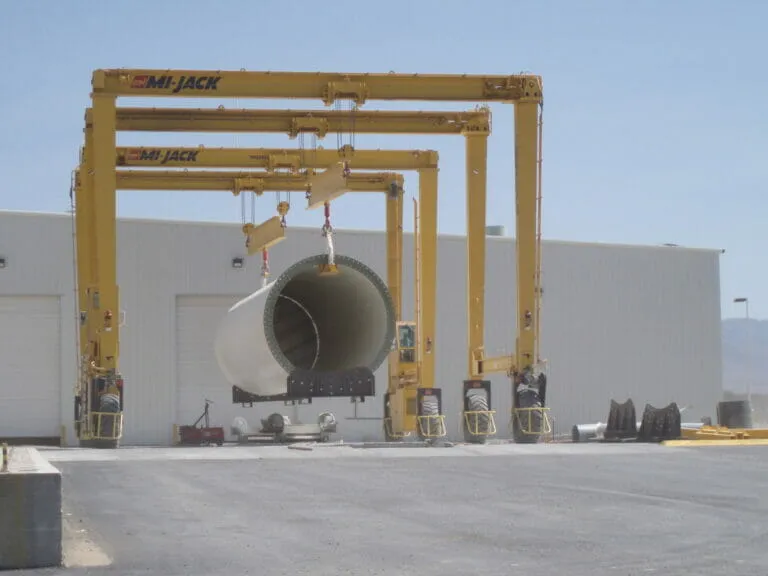

Tandem Lifting of a Wind Turbine Section Using I Beams with Center Swivels and J Hooks
Wind turbine section lifted by two Travelifts with I beams featuring center swivels and J hooks
Using Magnets to Handle Slabs
Travelift using magnets to lift steel slabs

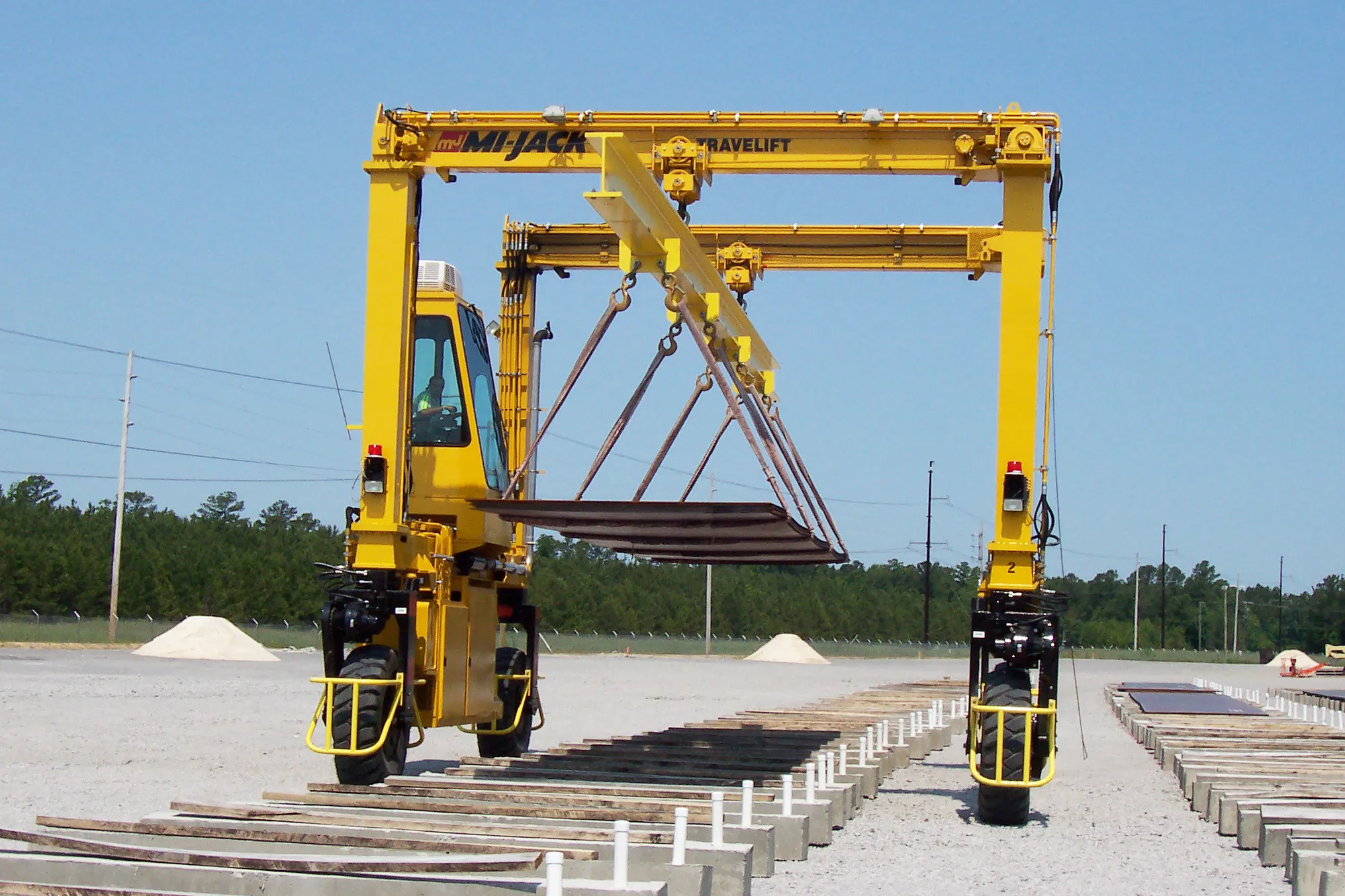

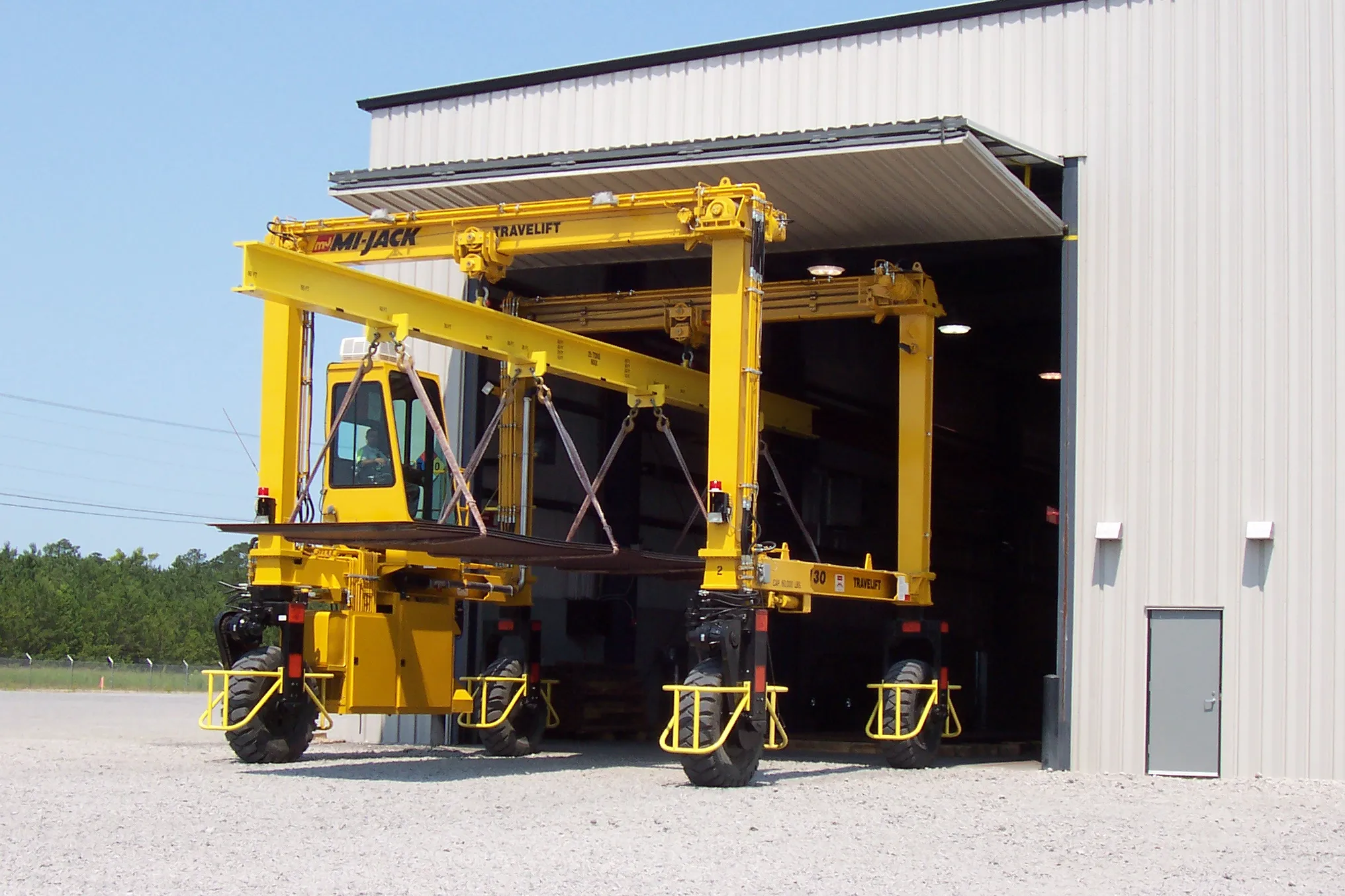

Handling Slabs Using Straps on an I Beam Spreader
Travelift carrying a slab out of a building using straps on an I beam spreader
Sound Barrier Handling on An Airfield
- 75’ spreader with 13 crossbeams spaced at 6’ centers
- Two pick points on each crossbeam
- Designed to minimize the depth under the spreader due to height of the sound barrier product

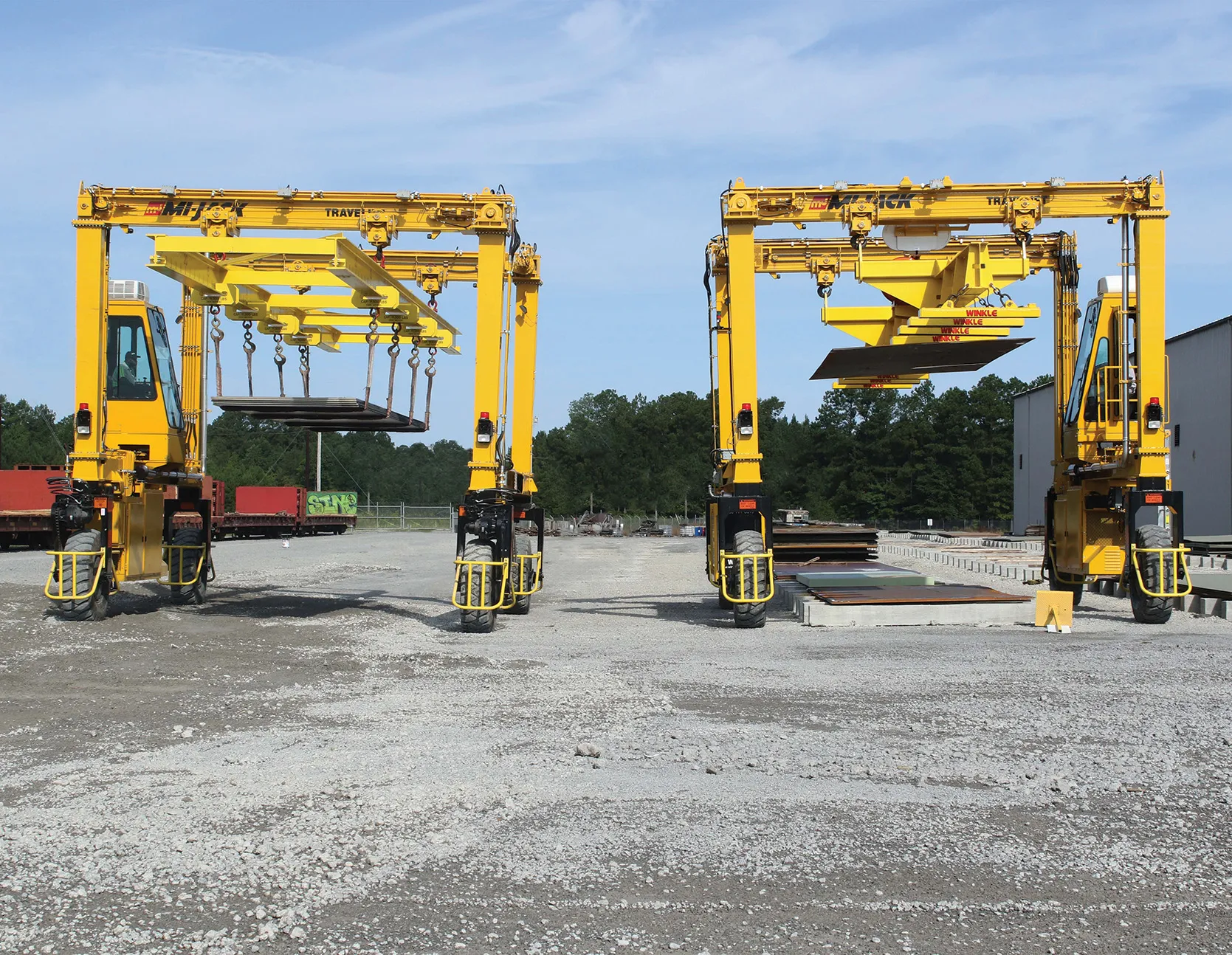

Comparison of Two Travelifts Handling Slab. On the left, rigging is being used, which is a two-person job. On the right, magnets are being used, which is a one-person job.
- Rigging for slab versus using magnets for slab
- The use of magnets for handling slab transforms the job into a one-person operation
- 12 magnets are being used for handling the relatively fragile load
Large Cylinders being handled by a Travelift that has a power rotating spreader bar with a center pick point.
- Power rotating spreader bar with a center pick point
- Rotates 360 degrees
- Operated from the cab
A Section of Pipe for an Oil Project being Lifted by an I Beam Spreader Bar with Slides
I beam spreader bar with slides for handling pipe; allows for pipes to be brought over to modules for oil projects

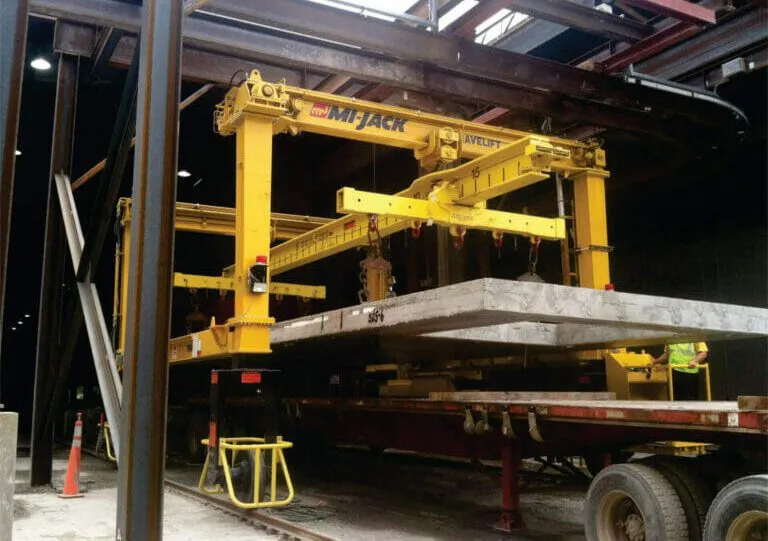

An MJ30 on Rails has Sliding Crossbeams and Multiple Pick Points and is Handling a Large Section of Concrete
- MJ30 on rails handling concrete using sliding crossbeams that are attached to the main beam
- Each crossbeam has 5 pick points
- The front and back are attached via a cable so they stay symmetrical to the center line of the spreader
Spreader Bar Handling Metal Plates with Magnets
Metal plates being lifted by magnets on the spreader bar of a Travelift

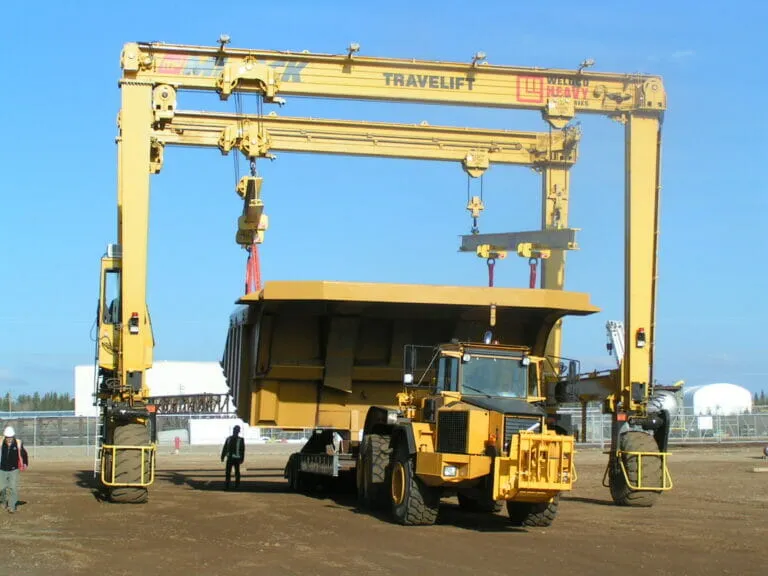

Main Aux Hoist Spreaders Featuring Two Slides Each for Lifting Large Machines
Large machinery being handled by a Travelift that has main aux hoist spreaders with two slides each
Magnets Handling Billets
Piles of billets beneath a Travelift being handled using magnets on a spreader bar
Long Product Handling
Two Travelifts handling long product with center pick point spreaders

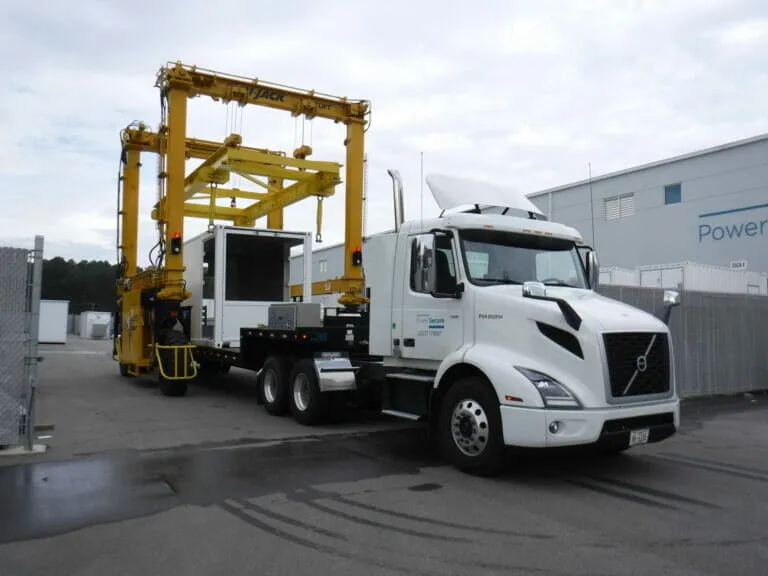

Handling Generator Units with a Rectangular Beam and Four Slides
Generator unit being handled by a Travelift featuring a rectangular beam and four slides
Fixed Container Spreader
20’ fixed container spreader

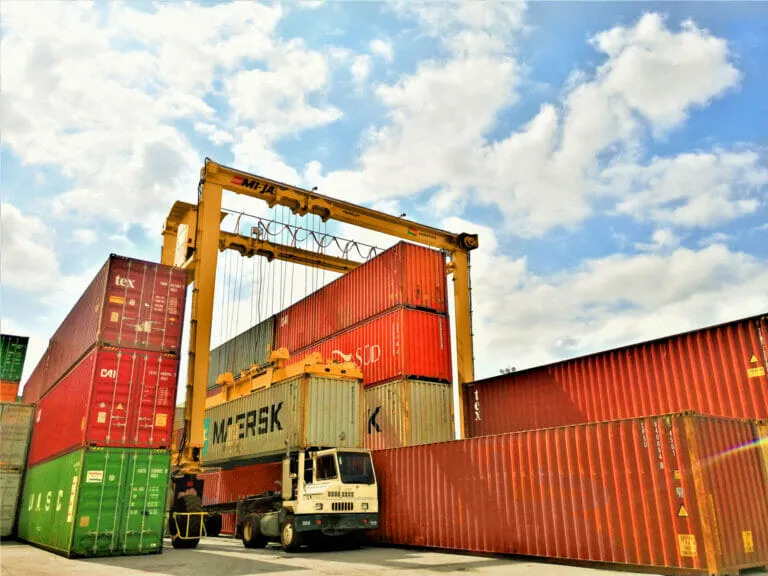

Expandable Container Spreader, 20’-40’
Travelift stacking containers with an expandable container spreader
Long and Short Product Handling
- 26’ spreader with a center pick point and two slides
- Center pick point is for handling long products using two Travelifts
- Two slides are for handling shorter products with one Travelift

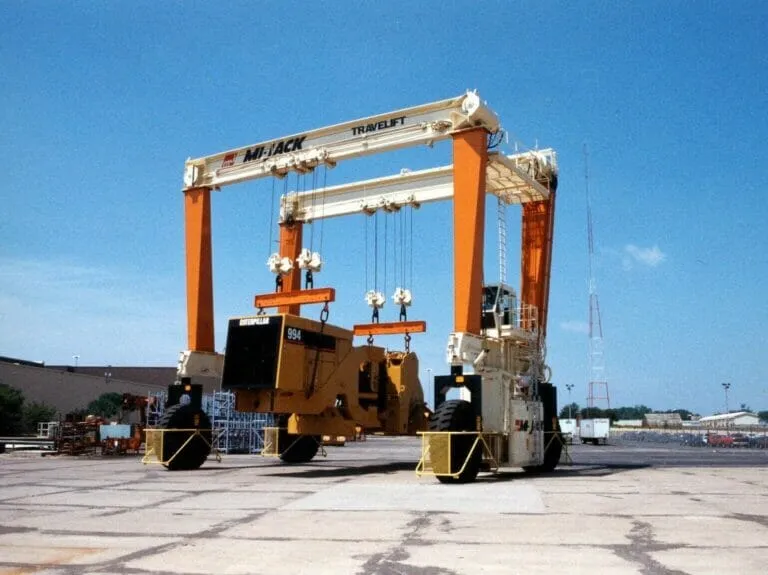

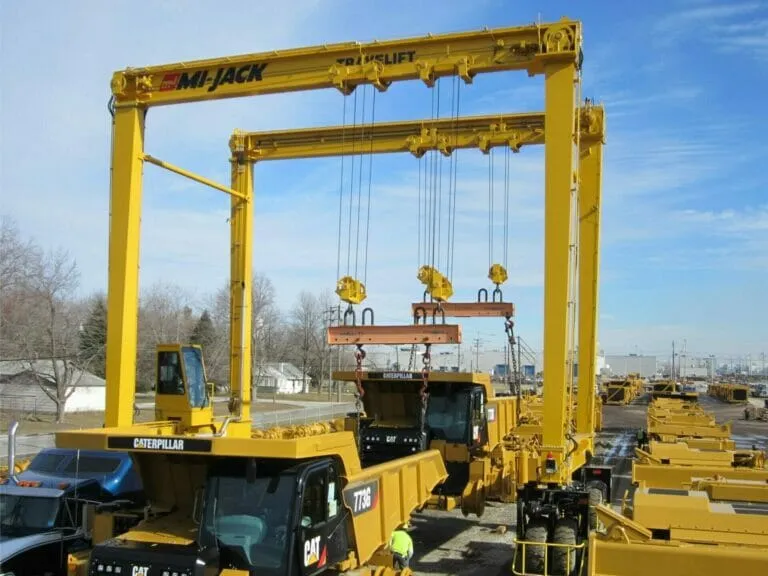

Travelift Lifting Wheel Loaders Using Dual Trolley and Two Interface Beams
- Wheel loader handling using a dual trolley machine with two interface beams on a Travelift
- Creates a wider pick point to grab wheel loaders with
Wheel Loader Being Lifted by an MJ100 Using a Dual Trolley and Two Interface Beams
- Handling wheel loaders using a dual trolley machine with two interface beams on an MJ100
- Creates a wider pick point to grab wheel loaders with
Travelift Handling a Carry Deck Crane Using an I Beam Spreader with Crossbeams
Handling a Carry Deck crane using an I beam spreader with crossbeams on top for reducing depth

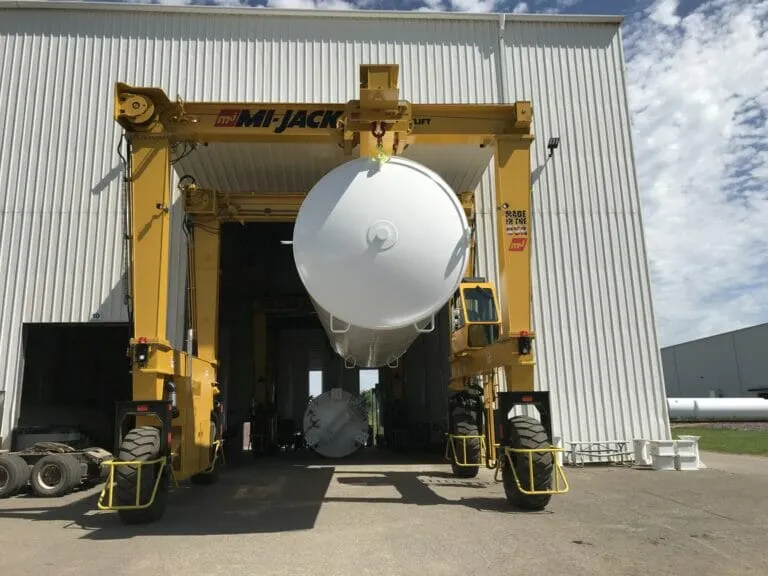

Large Metal Cylinder Lifted by a Box Beam Spreader with Slides
- Box beam spreader with slides allows for more room beneath the spreader than typical I beams
- Typically used for indoor/outdoor applications that necessitate lower machine heights and thus require additional space be made below the spreader bar

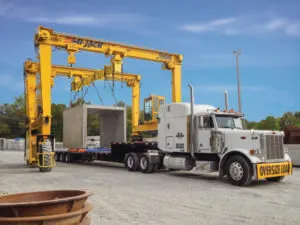

Box Beam Spreader with Various Pick Points for Handling Concrete Forms
A box beam spreader with various pick points lifts a concrete form

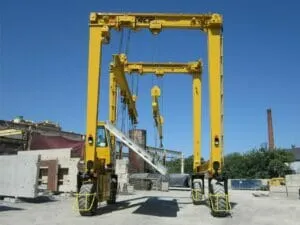

Aux Main Hoist Spreader Bar for Handling Concrete
A Travelift handling a concrete slab with aux main hoist spreader bars
Auto Leveling Trolley Wheels on I Beam Spreader Bars
A Travelift with auto leveling trolley wheels on an I beam spreader bar handling a concrete slab
Auto Extendable and Retractable Spreader Bar for Handling Rebar
Rebar being lifted by an auto extendable and retractable spreader bar
Dual Trolleys on an MJ30 Handling Carrier Air Conditioning Units
Air conditioner unit being handled by dual trolleys on an MJ30 Travelift
750D Spreader Bar with 14’ Wing Crossbeams that a construction company is using to handle Electrical Modules
Travelift handling electrical modules using a 750D spreader bar with 14’ wing crossbeams

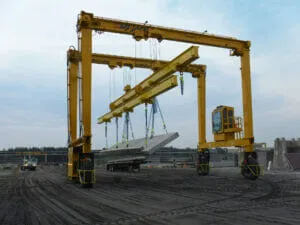

62’ Main and Aux hoist Spreader Bar with Slides
Concrete slab handling with a 62’ main and aux hoist spreader bar with slides
